PSG (Pipe Support Generator) is an advanced software solution designed to streamline and enhance the process of creating pipe support designs. Specifically tailored for industrial applications in sectors like oil and gas, power plants, and petrochemicals, PSG empowers users to produce high-quality 3D CAD models and 2D fabrication drawings with exceptional speed and accuracy.
PSG integrates seamlessly with Autodesk Inventor versions 2020 through 2025, ensuring a robust platform for efficient design workflows.

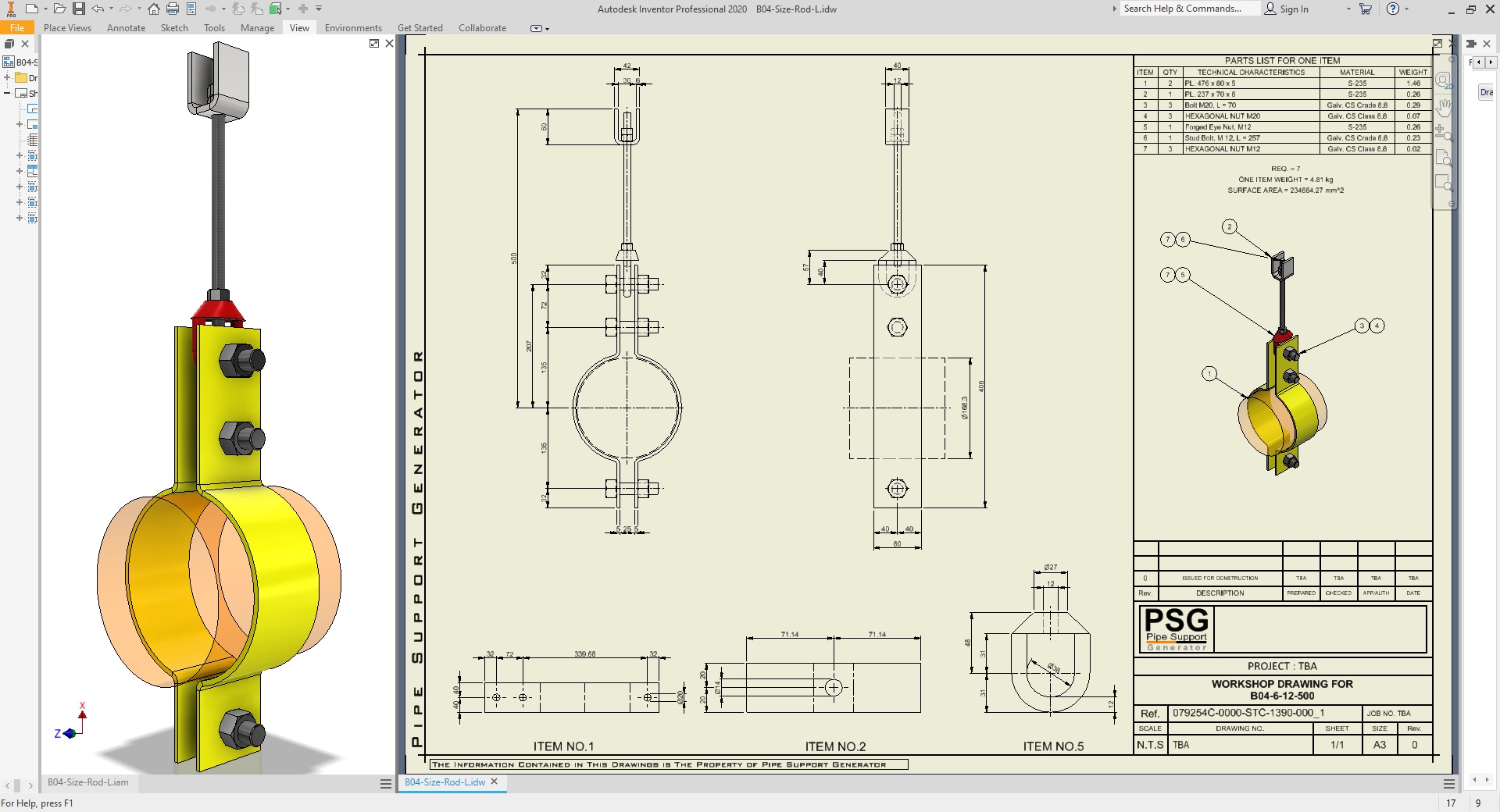

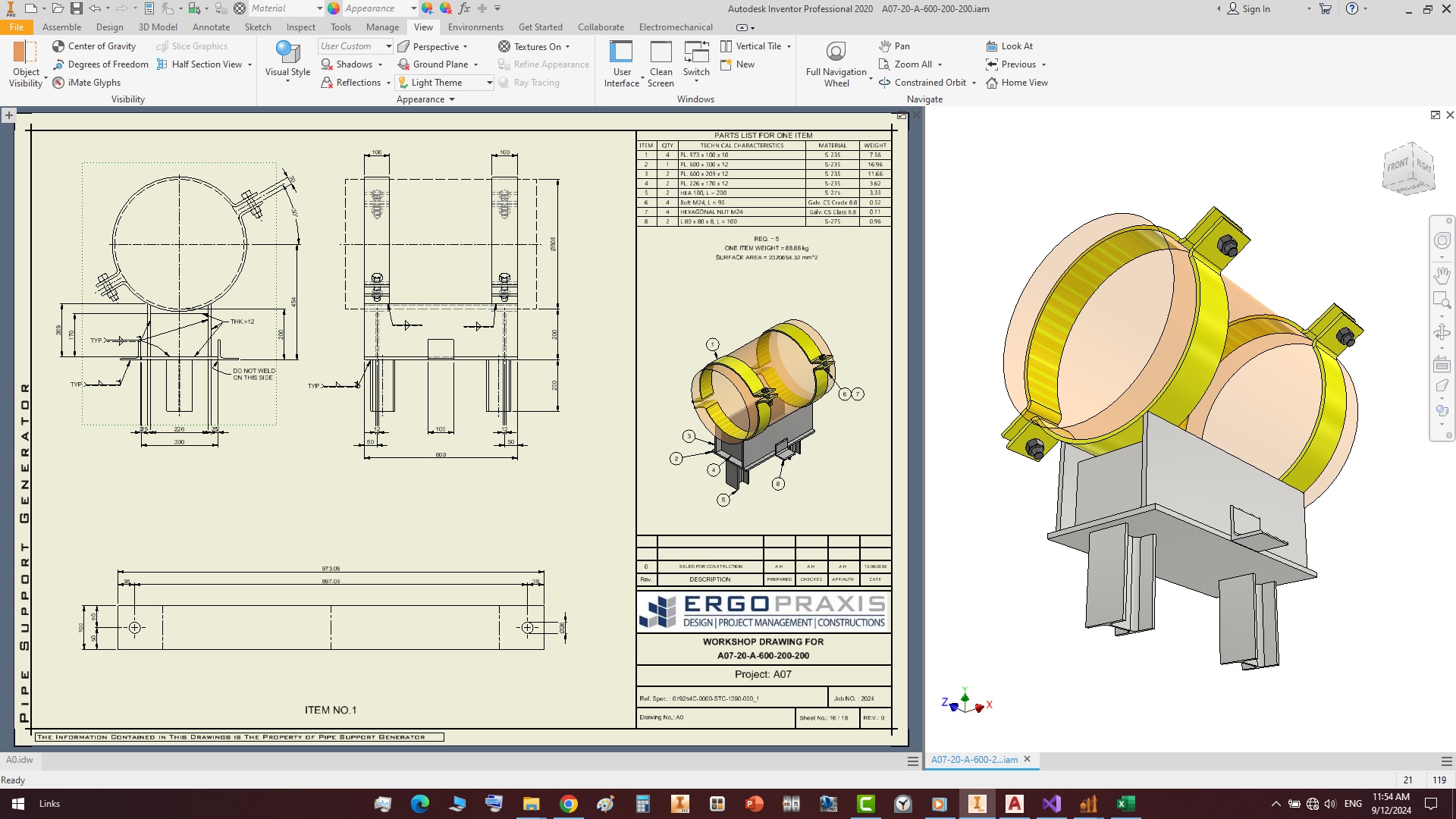

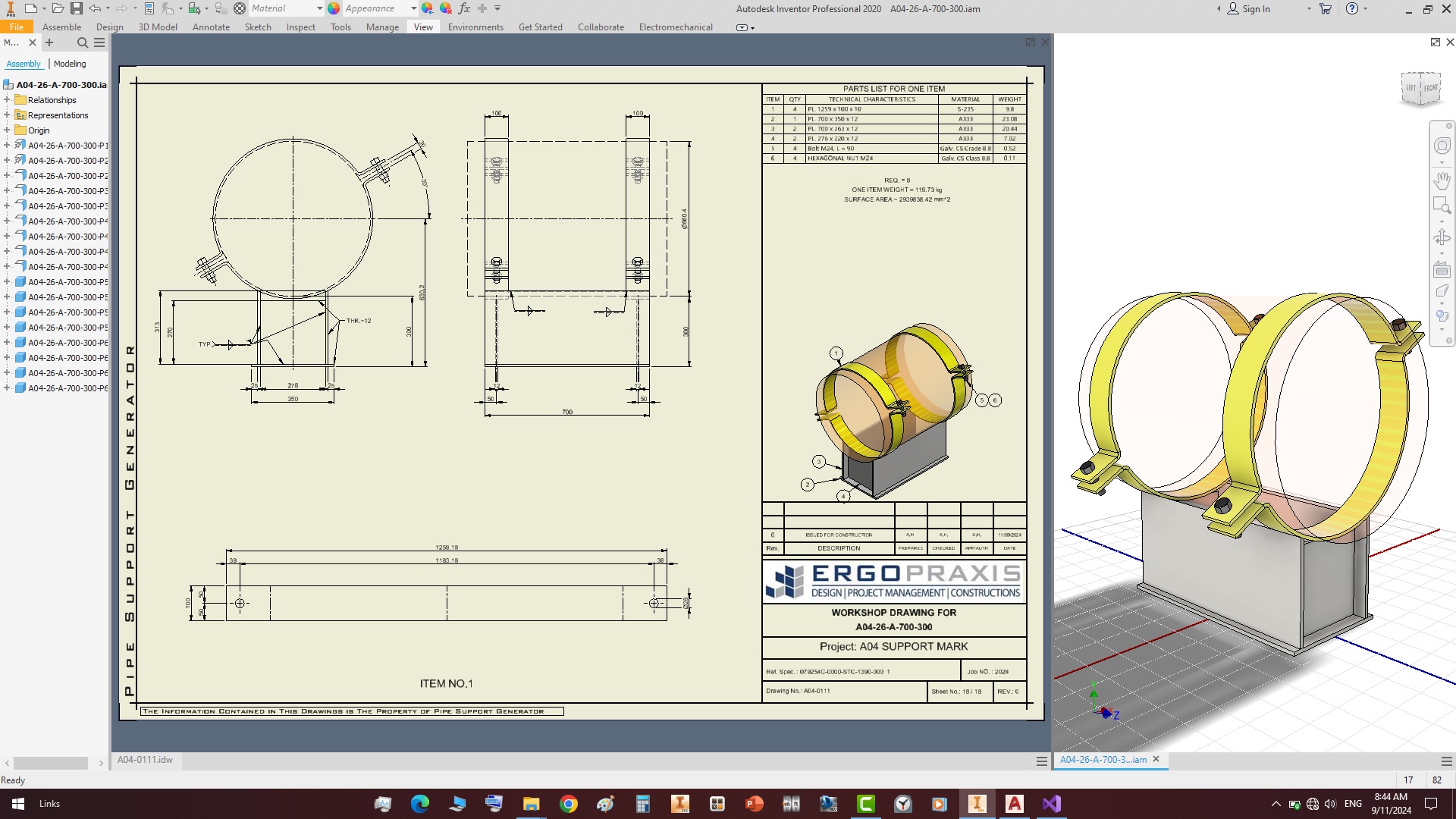

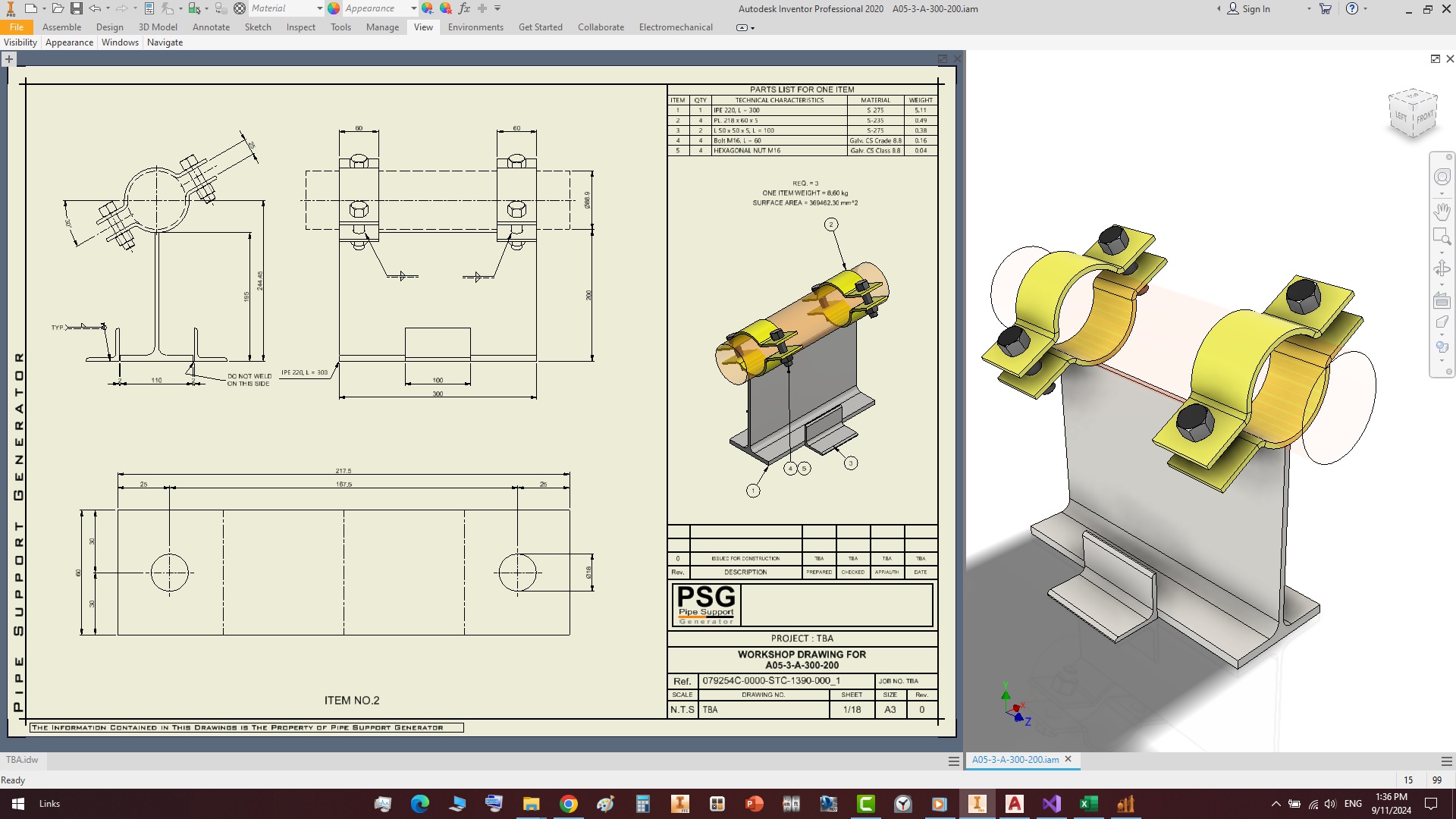

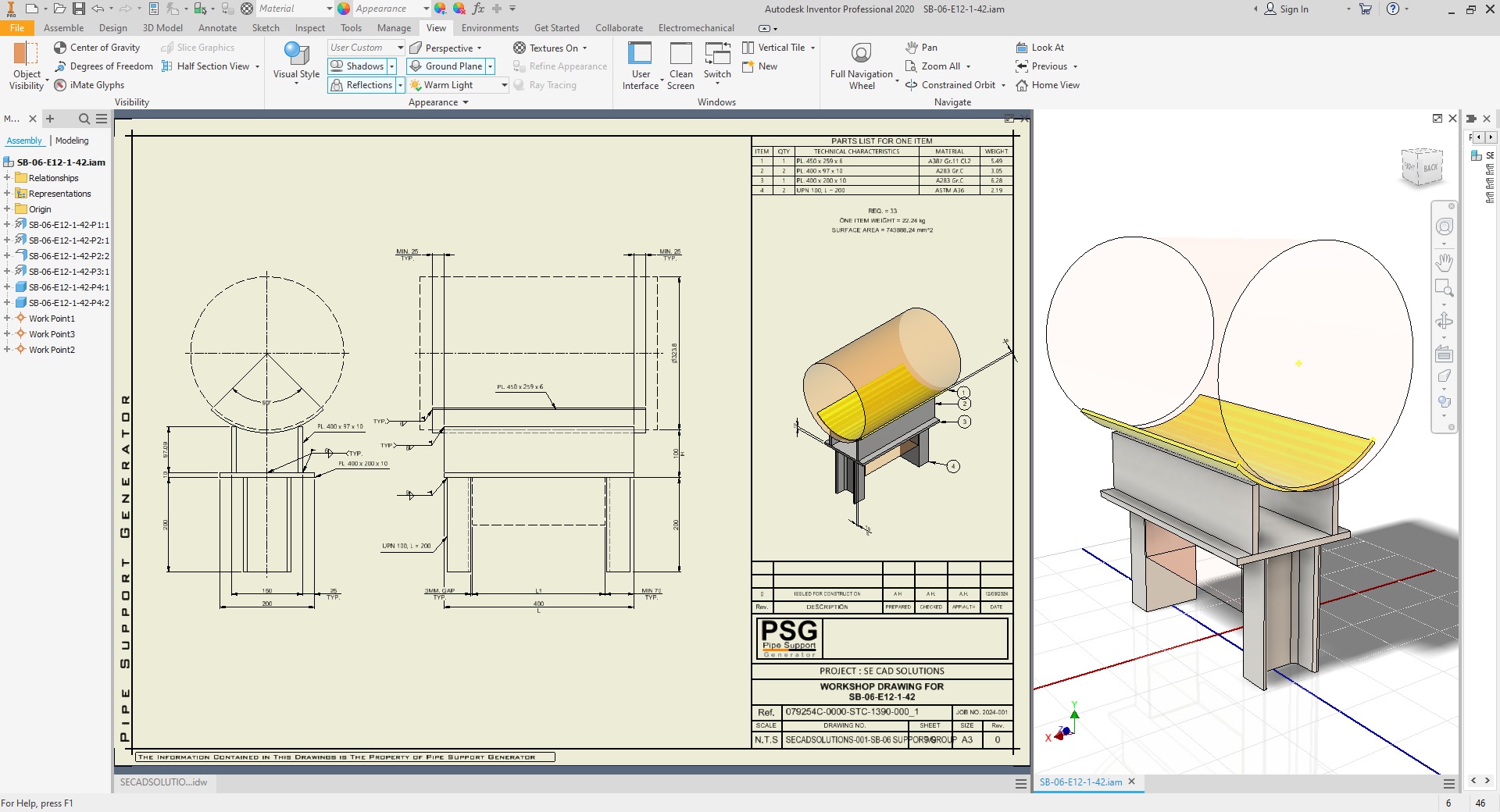

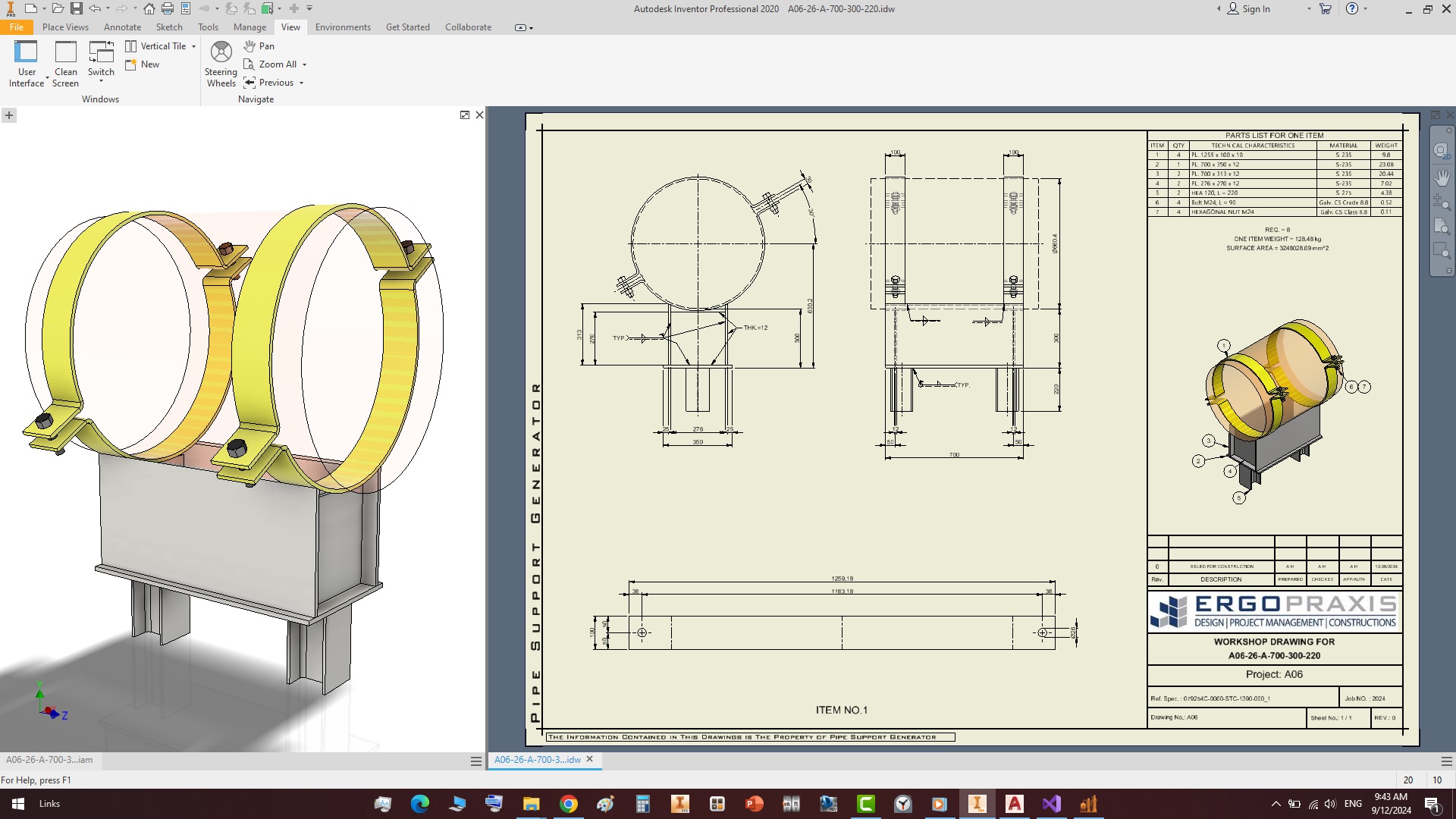

With PSG, users can produce: � A detailed 3D CAD model, � A 2D fabrication drawing, and A comprehensive Bill of Materials (BOM) in just 30 to 50 seconds per design.
PSG is ideal for supporting complex piping networks in chemical processing plants, helping engineers design efficient and reliable pipe supports for high-pressure and high-temperature environments
Municipal and industrial water treatment plants require robust pipe support systems for large pipelines. PSG assists in designing supports for water transmission, wastewater disposal, and desalination facilities.
For commercial buildings, hospitals, and industrial facilities, PSG provides accurate pipe support solutions for HVAC, fire protection, and plumbing systems, ensuring proper installation and maintenance.
Hygiene and safety are critical in food and beverage manufacturing. PSG helps in designing stainless steel pipe supports for clean-in-place (CIP) systems and process piping.
Shipyards and offshore platforms rely on PSG for creating pipe support structures for engine rooms, ballast systems, and fluid transport pipelines in harsh marine environments.
Precise and contamination-free piping is crucial in pharmaceutical and biotech facilities. PSG supports the design of high-purity piping networks for manufacturing and cleanroom environments.
PSG helps in designing pipe supports for slurry transport, chemical processing, and metal refining plants, ensuring stability in harsh and corrosive conditions.
Factories and production plants use PSG to create efficient piping support systems for compressed air, steam, and process piping in automotive, aerospace, and general manufacturing sectors.
Power Generation
Used in thermal, nuclear, and renewable power plants, PSG aids in creating pipe support structures for steam, cooling, and process piping, ensuring safety and compliance with industry standards.
